Energy Flow Measurement Products ► Long Radius Flow Nozzle

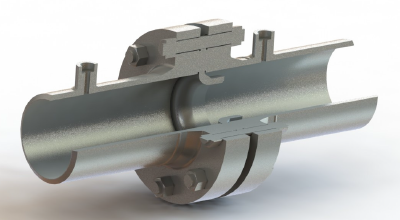

DPF-608 Long Radius Flow Nozzle is designed according to ISO5167. It is durable and exhibits a higher turndown ratio, compared with generic orifice plates.

The flow nozzle offers some distinct advantages over standard orifice plates as it produces less differential pressure for a given beta ratio, resulting in an overall lower permanent pressure loss. Conversely, the flow nozzle allows 2 times rangeability against an orifice plate with the same differential pressure.
